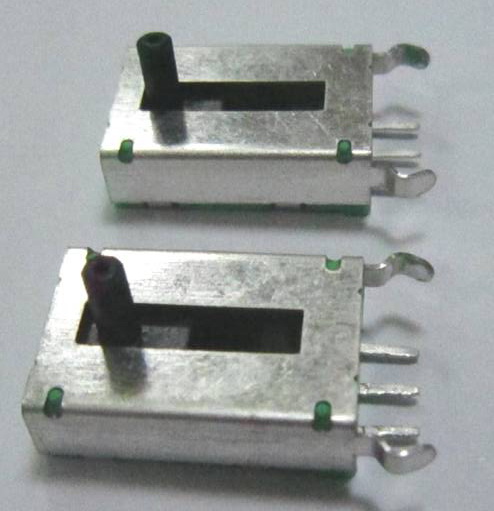

Distinctive features
1、High reliability
2、Simple construction (only 4 component parts)
3、ROHS compliant and lead free wave soldering.
4 、Long life, over 100,000Cycles.
Typical Applications
1、Automotive seat position memory.
2、Automotive Headlamp levelling position sensors.
3 、Automotive rear-view mirror position sensors.
Electrical characteristics
1.Resistance Range………………… 1K~100K
2.Total resistance tolerance……… +/-20%
3.Taper style ……………………….. B taper
4.Power rated………………………… 0.2W @50°C
5.Independent Linearity…………… +/-2%
6.Max. Voltage ……………………… DC30V
7.Contact noise……………………… Within 10%TR
Mechanical characteristics
1. Mechanical travel …………….. 8mm
2. Electrical travel …………………… 6.4mm
3. Rotational Torque……………… 200 gf.cm Max.
4. Push Pull strength of lever…… push: 5Kg Min; pull: 2Kg Min .
5. Stopper strength………………… 3Kg Min,5Sec.
Environmental characteristics
1. Storage temperature ……… -40°C to +105°C
2.Operating temperature……… -40°C to +105°C
3.Life cycles…………………….. 100,000cyles Min
4. Heat resistance………………. 105±2℃, 96 H,
ΔTR:+/-20%, Linearity:+/-3%
5.Cold resistance……………… -40±3℃ , 96 H,
ΔTR:+/-20%, Linearity:+/-3%
6. Humidity resistance…………… 40±2℃,90~95RH,96H
ΔTR:+/-20%, Linearity:+/-3%
7. Temperature cycles…………… -40℃~+105℃,5cycles.
ΔTR:+/-20%, Linearity:+/-3%
