Series F091
Package diameter 9mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs 1-6
Power-linear 0.05W
Power-audio 0.025W
Life cycle 15K
Switch Option Y
Detent Option Y
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

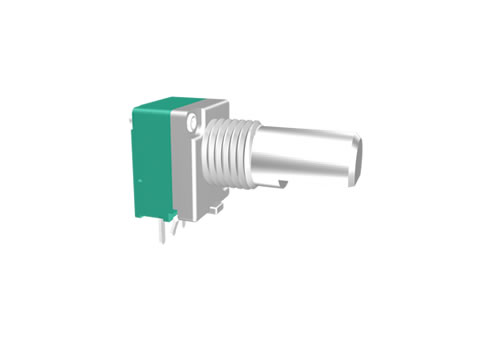

F091 Series
Metal shaft Potentiometer

Feature

1. Flux build-up prevention is taken through inserting molding around the resistor with resin.
2. A large variety of products lined up to support various applications.
3. Long Life Type Available



Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500Ω<R<1MΩ:± 20%  R<500Ω or R>1MΩ:±30%
Resistance Taper  A, B, C
Max. Operating Voltage  AC50V.DC10V
Rated Power  Linear Taper B: 0.05W   Other Tapers: 0.025W
Rotational Noise  Less than 100mv
Insulation Resistance  More than 100MΩ at DC 250v
Withstand voltage  1 minute at AC 300V
Residual Resistance  Term.1~2: Less than 20Ω Term.2~3: Less than 20Ω
Gang Error (Dual Unit or Multi Unit)  -40dB~0dB ± 3dB
Mechanical characteristics
Total Rotational Angle  300°± 10°
Rotational Torque  5~90gf.cm
Click Torque  50gf.cm~200gf.cm
Rotational Stopper Strength  4.0Kgf.cm Min.
Push-Pull Strength  6.0Kgf Min
Bushing nut tighten strength  8.0Kgf.cm Min
Number of detents (click)  1C (Center Detent), 11C, 21C, 41C
Durability
Operating temperature range  -10°C ~ +70°C
Storage temperature range  -30°C ~ +80°C
Rotational Life  15,000 Cycles
Switch characteristics
Contact resistance  Less than 100mΩ
Switch rated power  Push: 0.5A at DC 12V  Rotational:3.0A at DC 16V
Switch push stroke length  0.5+0.5/-0.3mm
Switch Rotational Angle  50° Max
Switch torque  Push: 250~550gf   Rotational: 100~350gf.cm
Switch circuit  S.P.S.T & D.P.S.T
Switch life  15,000 Cycles Min.
