Product Detail

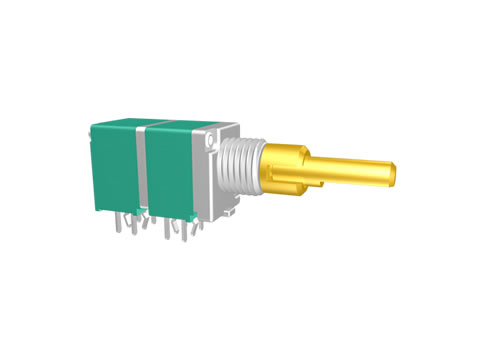

Series F092
Package diameter 9mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs 2-6
Power-linear 0.05W
Power-audio 0.025W
Life cycle 15K
Switch Option Y
Detent Option Y
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1. Flux builded-up prevention is taken through inserting molding around the resistor with resin.

2.A large variety of products lined up to support various applications.

3.With Dual shaft adjustmeat.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500Ω<R<1MΩ:± 20%      R<500Ω or R>1MΩ:±30%
Resistance Taper  A, B, C
Max. Operating Voltage  AC50V, DC10V
Rated Power  Linear Taper B: 0.05W: Other Tapers: 0.025W
Rotational Noise  Less than 100mv
Insulation Resistance  More than100MΩ at DC 250v
Withstand voltage  1 minute at AC 300V
Residual Resistance  Term.1~2: Less than 20Ω: Term.2~3: Less than 20Ω
Mechanical characteristics
Total Rotational Angle  300°±10°
Click Torque  50gf.cm~200gf.cm
Stopper Strength  4.0Kgf.cm Min.
Push-Pull Strength  6.0Kgf Min
Rotational Torque (outer shaft)  5gf.cm~90gf.cm
Rotational Torque (inner shaft) 3gf.cm~60gf.cm
Durability
Rotational Life  Standard life: 15,000 Cycles Min.: Long life: 100,000 Cycles Min.
Switch characteristics
Switch rated power  3.0A at DC 16v
Switch Contact Resistance  Less than 100mΩ
Switch Angle  50 °Max
Switch torque  100~350gf.cm
