Product Detail

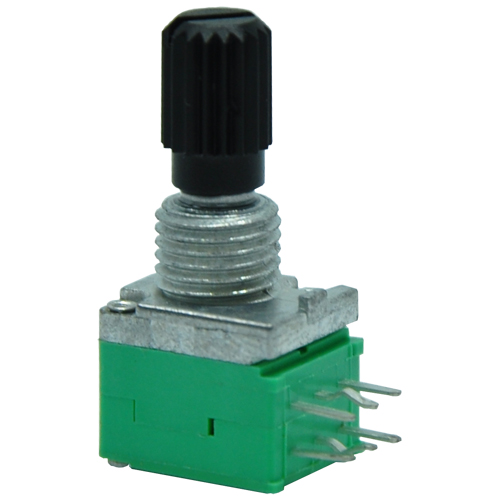

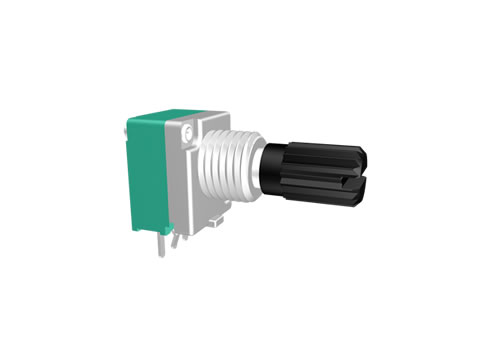

Series F093
Package diameter 9mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs 1-6
Power-linear 0.05W
Power-audio 0.025W
Life cycle 15K
Switch Option Y
Detent Option Y
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1. Various configuration can be adjusted according to customer's requirement.

2. Snap-in structure assures easy mounting.

3. Closed structure improves dust and flux resistance.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance 500Ω<R<1MΩ:± 20%  R<500Ω or R>1MΩ:±30%
Resistance Taper  A, B, C
Max. Operating Voltage  AC50V, DC10V
Rated Power  Linear Taper B: 0.05W: Other Tapers: 0.025W
Rotational Noise  Less than 100mV
Insulation Resistance  More than100MΩ at DC 250v
Withstand voltage  1 minute at AC 300V
Residual Resistance  Term.1~2: Less than 20Ω:Term.2~3: Less than 20Ω
Gang Error (Dual Unit) -40dB~0dB±3dB
Mechanical characteristics
Total Rotational Angle  300°± 10°
Rotational Torque  5~90gf.cm
Click Torque  50gf.cm~200gf.cm
Rotational Stopper Strength  3.0Kgf.cm Min
Push-Pull Strength  6.0Kgf Min
Durability
Rotational Life  Standard life:15,000 Cycles Min.: Long life: 100,000 Cycles Min.
