Product Detail

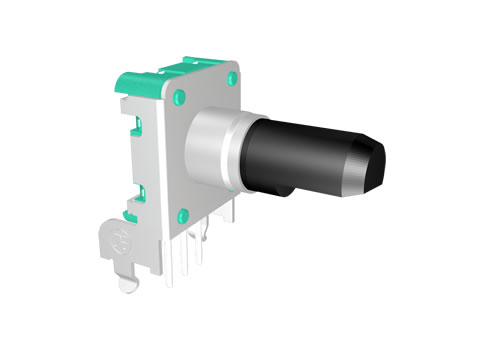

Series F12E
Package diameter 12 mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 15K
Switch Option Y
Detent Option 12, 24
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse 12, 24
Shaft material Plastic
Life cycle
Operating type
Power rating DC5V,10mA
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.High resolution of 12-pulse/12-detent and 24-pulse/24-detent in 12mm size.

2.The option of a new shaft and bushing create a comfortable feel with high accuracy.

3.Incremental type.

Electrical characteristics
Rated Power  DC 5V 10mA (1mA Min)
Fluttering  t1,t3<3ms
Insulation Resistance  More than 10MΩ at DC50V 1mA Withstand voltage1 minute at AC 50V 1mA
Sliding Noise (Bounce)  t2<2ms
Phase Difference  >0.08T
Mechanical characteristics
Rotational Torque of Detent  50gf.cm~150gf.cm(at 5~35℃)
Rotational Torque  10gf.cm~90gf.cm
Total Rotational Angle  360° Continuous
Number and Position of Detent  12 Detents (Angle: 30°±3°); 24 Detents (Angle: 15°±3°)
Push-Pull Strength of shaft  5.0Kgf Min
Durability
Rotational Life  30,000 Cycles Min
Switch characteristics
Contact resistance  100mΩ Max
Maximum ratings  DC 5V, 10mA (1mA Min)
Insulation resistance  More than 10MΩ at DC 50V, 1mA
Withstand voltage  1 minute at AC 60V 1mA
Travel  0.5+0.4/-0.3 mm
Operating Force  550±300gf
Durability
Rotational Life  30,000 Cycles Min
