Product Detail

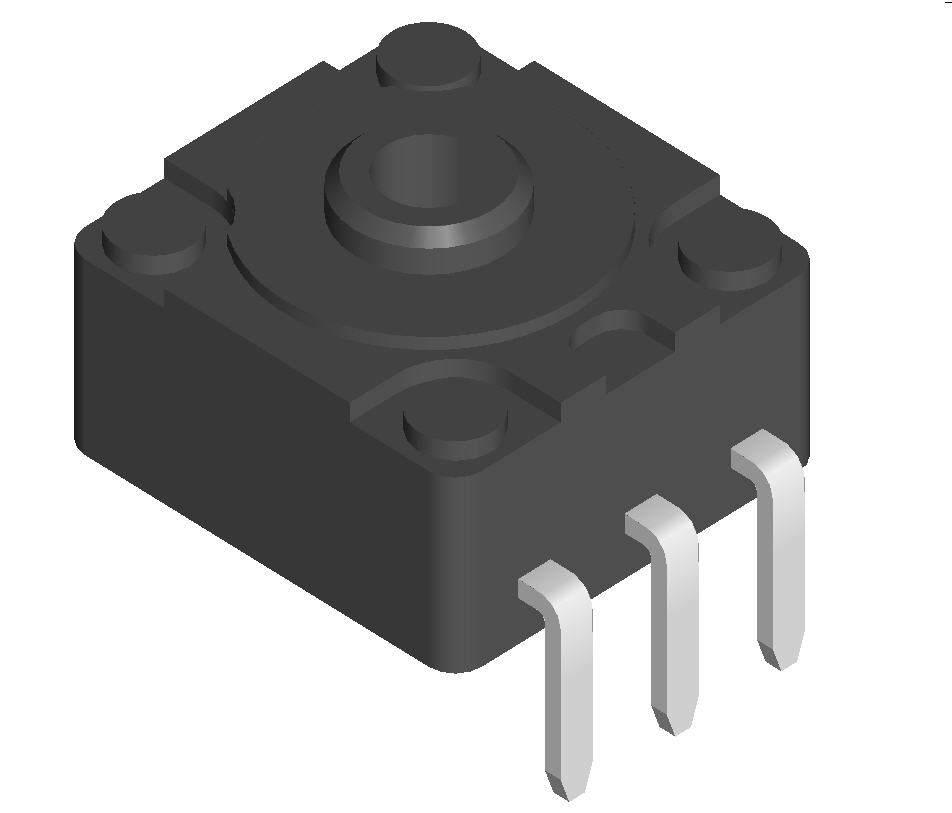

Series FSE07
Package diameter 7mm
Operating Direction
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 1Million cycles
Switch Option N/A
Detent Option N/A
Mounting
Element
Temperature ppm/℃
Tolerance +/-20%
Pulse
Shaft material
Life cycle
Operating type Rotary
Power rating 0.1W
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.Dust proof construction protects the interior from dust,which maintains stable characteristics.

2.High accuracy and long life over 1 million cycles

3.Stabl output characteristics can be secured for external noise and temperature changes

Electrical characteristics
Total Resistance  500Ω~1MΩ
Total Resistance Tolerance  ±20%
Resistance Taper  B taper
Rated Voltage  DC 5V, AC 50V
Rated Power  0.01W
Linearity Tolerance  Less than ±2%
Sliding Noise  Less than 300mV
Insulated Resistance  More then 100MΩ at DC25V for1 Minute
Withstand Voltage  250V AC, for 1 Minute
Mechanical characteristics
Total Rotational Angle  360°Continuous
Rotational Torque  Less than 50gf.cm
Pull Strength of Rotational Shaft  500gf Min
Environmental characteristics
Storage Temperature -40℃ to +70℃
Operating Temperature -10℃ to +70℃
Dry Heat 70±2℃,240±2h,△TR+5%/-30%
Cold -30±2℃,300±5h,Without load,△TR±20%
Damp Heat  70±2℃,85%RH,300±5h,△TR+35/-5%
Temperature Cycles -10℃~+70℃C,5 cycles,△TR±10%
Rotational Life  1 million cycles min
Temperature Characteristic 70±3℃,5H,△TR+5%/-20%
Soldering Condition  Wave soldering:260±5℃,Sec. Max.
Manual Soldering  350°C±10°C 3 Sec Max.
