Product Detail

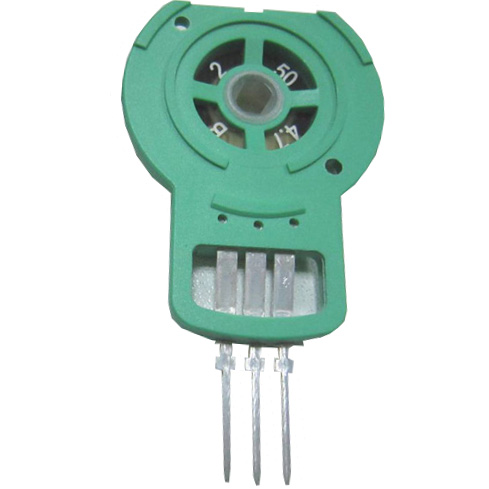

Series FSE28
Package diameter 17mm
Operating Direction
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 200K cycles
Switch Option N/A
Detent Option N/A
Mounting
Element
Temperature ppm/℃
Tolerance +/-20%
Pulse
Shaft material
Life cycle
Operating type Rotary
Power rating 0.1W
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.Dust proof construction protects the interior from dust,which maintains stable characteristics.

2.FR-4 element materials compliant to flow high peak temperature lead free soldering.

3.Long life,over 200,000 Cycles .

Electrical characteristics

Resistance Range  1K~100K
Total Resistance Tolerance  ±20%
Taper Style  B taper
Power Rated  0.1W
Linearity  ±2%
Contact Noise  Within 10% TR
Rated Voltage  DC 5V±0.5V
Mechanical characteristics
Electrical Angle  250°±3
Rotational Torque  0~50gf.cm
Push Pull Strength of Shaft  1.0kgf for 10 seconds min
Total Rotational Angle  360° (Endless)
Typical Applications
HAVC sensor
Rotary Angle Sensor
Environmental characteristics
Storage Temperature -40°C to +85°C
Operating Temperature -40°C to +85°C
Life Cycles  200,000 Cycles Min
Dry Heat  +85±3°C, 168±4H △TR : ±40%,Linearity:±3%
Cold -40±3°C, 168 ±4H △TR:±40%,Linearity:±3 %
Humidity  60±20°C, 90~95RH, 100±4H △TR:±40%,Linearity:±3%
Temperature Cycles -40°C~+85°C, 5cycles △TR:± 40 %,Linearity:±3 %
