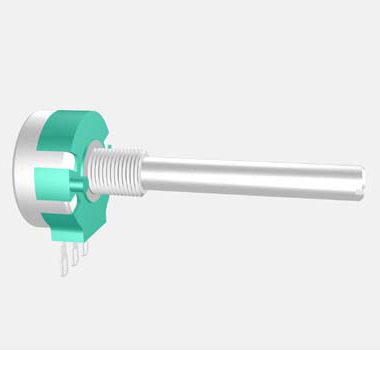

| Series | F24K5 |
| Package diameter | 24mm |
| Operating Direction | Vertical |
| Bushing material | |
| Number of Gangs | 1 |
| Power-linear | 0.5W |
| Power-audio | 0.25W |
| Life cycle | 1Million |
| Switch Option | N/A |
| Detent Option | N/A |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1 1millions min cycles rotational life
2 Single-turn industrial panel controls
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω |
| Resistance Taper | A, B, C |
| Max. Operating Voltage | DC 200V |
| Rated Power | Linear Taper B: 0.5W, Other Tapers: 0.25W |
| Rotational Noise | Less than 300mV |
| Insulation Resistance | More than 100MΩat DC 1000V |
| Withstand voltage | 1minute at AC1000V |
| Residual Resistance | Term.1-2:Max.0.5% of total resistance. : Term.2-3:Max.0.5% of total resistance. |
| Contact Noise | e10% or less of the total resistance |
| Mechanical characteristics | |
| Total Rotational Angle | 300°±10° |
| Rotational Torque | 5~70gf.cm |
| Stopper Strength | 9.18Kgf.cm.Min |
| Push-Pull Strength | 12.75Kgf Min |
| Bushing nut tighten Strength | 15Kgf.cm Min |
| Durability | |
| Rotational Life | Standard life: 1 Million Cycles Min: Long life: 2 Million Cycles Min |
