Product Detail

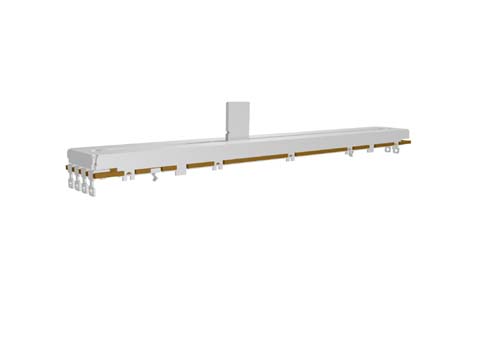

Series F10008
Package diameter
Operating Direction Horizontal
Bushing material
Number of Gangs
Power-linear 0.25W
Power-audio 0.125W
Life cycle 50K
Switch Option
Detent Option N/A
Mounting
Element 1-2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 100
Lever length 13.5/14.5
Turns
Specification Document download
Introdution

1.Metal housing.

2.Excellent operational feel from less lever wobble.

3.Maximum attenuation of over 110dB(compatible to total resistance value of over 10kΩ)

4.Metal slide rod type.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500 Ω
Resistance Taper  A, B, C
Withstand Voltage  1 minute at AC 300V
Insulated Resistance  More than 100MΩ at DC 250V
Sliding Noise  Less than 100mV
Residual Resistance  Term .1~2: Less than 10Ω; Term .2~3: Less than 30Ω
Gang Error (Dual Unit) - 40dB~0dB±3dB
Max operating Voltage  DC 20V
Rated Power  Linear Taper B: 0.25W;Other Tapers: 0.125W
Mechanical characteristics
Slide Travel  100mm
Slide torque  Less than 30gf
Stopper Strength  10Kgf.cm (from the base level to a point of 2mm)
Level Wobble  2(2xL)/25mm Max. (L: Level length both sides)
Level Push-Pull Strength  5.0Kgf Min at 10Sec.
Durability
Slide Life  50,000 Cycles Min
