Product Detail

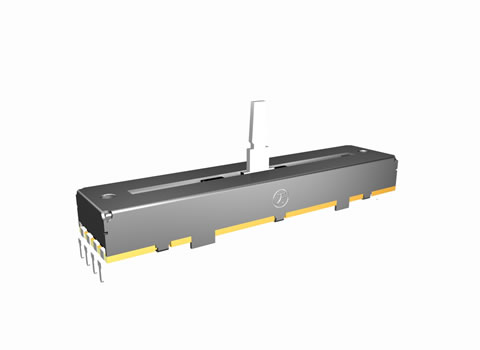

Series Fxx46
Package diameter
Operating Direction Horizontal
Bushing material
Number of Gangs
Power-linear 0.25W
Power-audio 0.125W
Life cycle 200K
Switch Option
Detent Option N/A
Mounting
Element 2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 45/60
Lever length 8/15/16/20/25
Turns
Specification Document download
Introdution

1.Metal housing.

2.Available with tap.

3.Center detent option.

4.Metal  slide rod type.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500 Ω
Resistance Taper  A, B, C
Withstand Voltage  1 minute at AC 100V
Insulated Resistance  More than 100MΩ at DC 100V
Sliding Noise  Less than 100mV
Residual Resistance  Term.1~2: Less than 1Ω; Term.2~3: Less than 1Ω
Gang Error (Dual Unit)  -40dB~0dB±3dB
Max Operating Voltage  DC 20V
Rated Power  Linear Taper B: 0.25W; Other Tapers: 0.125W
Mechanical characteristics
Slide Travel  45mm, 60mm
Operating Torque  Less than 50gf
Stopper Strength  5.0Kgf.cm (from the base level to a point of 2mm)
Level Wobble  2(2xL)/20mm Max. (L: Level length both sides)
Level Push-Pull Strength  5.0Kgf Min at 10Sec.
Durability
Slide Life  200,000 Cycles Min.
