Product Detail

Series Fxx3
Package diameter
Operating Direction Horizontal
Bushing material
Number of Gangs
Power-linear 0.25W Max
Power-audio 0.125W Max
Life cycle 10K
Switch Option
Detent Option Y
Mounting
Element 2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 30/45/60
Lever length 10/15/16/20/25
Turns
Specification Document download

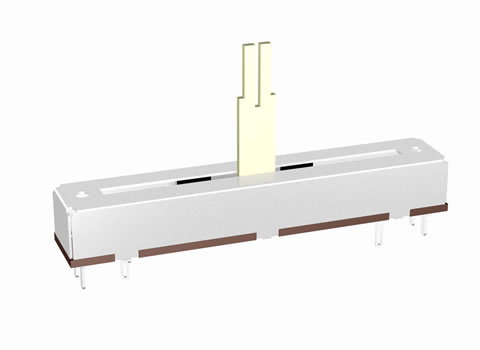

Introdution

1 Metal housing

2 Center detent available

3 Metal slide rod type

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500 Ω <R<1MΩ: ±20% :R< 500Ω  or R>1M Ω:±30%
Resistance Taper  A, B, C
Withstand Voltage  30~100mm: 1 minute at AC 500V
Insulated Resistance  30~100mm: More than 100m Ω at DC 500V
Sliding Noise  Less than 100mV
Residual Resistance  Term.1~2< 5 Ω Term.2~3< 5 Ω
Gang Error (Dual Unit)  - 40dB~0dB±3dB
Rated Voltage  Linear Taper B:30mm:AC 200V,45mm:350V;60~100mm:AC 500V Other Tapers :30mm:AC 150V,4 5mm:250V;60~100
Rated Power  Linear Taper B:30mm,0.1W;45mm:0.125W;60mm:0.25W Other Tapers :30mm,0.05W;45mm:0.06W;6 0mm:0.125W
Mechanical characteristics
Slide Travel  30mm, 45mm, 60mm
Slide Torque  20~300gf
Detent Torque (Only Center Click) 30gf~350gf
Stopper Strength  5.0Kgf.cm Min (From the base level to a point of 2mm)
Level Wobble  2(2xL)/20mm Max. (L: Level length both sides)
Level Push-Pull Strength  5.0Kgf Min at 10Sec.
Durability
Sliding Life  Standard life: 15,000 Cycles Min.: Long life: 100,000 Cycles Min.
