Product Detail

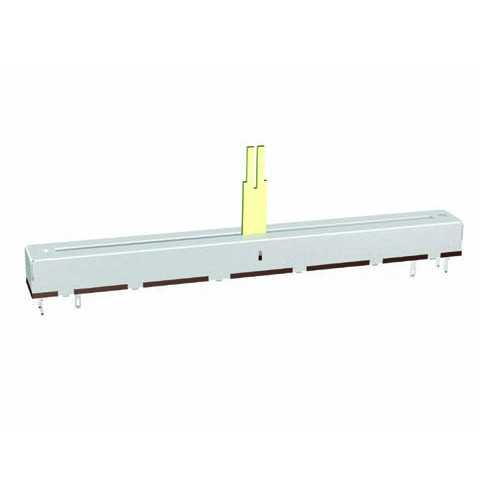

Series Fxx02
Package diameter
Operating Direction Horizontal
Bushing material
Number of Gangs
Power-linear 0.25W
Power-audio 0.125W
Life cycle 10K
Switch Option
Detent Option Y
Mounting
Element 2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 100
Lever length 10/15/16/20/25
Turns
Specification Document download
Introdution

1.Metal housing.

2.Center detent available.

3.Metal  slide rod type.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500 Ω <R<1MΩ: ±20% :R< 500Ω  or R>1M Ω:±30%
Resistance Taper  A, B, C
Withstand Voltage  30~100mm: 1 minute at AC 500V
Insulated Resistance  30~100mm: More than 100m Ω at DC 500V
Sliding Noise  Less than 100mV
Residual Resistance  Term.1~2< 10 Ω Term.2~3< 10 Ω
Gang Error (Dual Unit)  -40dB~0dB±3dB
Rated Voltage  Linear Taper B: 350V: Other Tapers: 250V
Rated Power  Linear Taper B: 0.25W: Other Tapers: 0.125W
Mechanical characteristics
Slide Travel  100mm
Slide Torque  20~300gf
Detent Torque (Only Center Click) .30gf~350gf
Stopper Strength  5.0Kgf.cm Min (From the base level to a point of 2mm)
Level Wobble  2 (2xL)/20mm Max. (L: Level length both sides)
Level Push-Pull Strength  5.0Kgf Min at 10Sec.
Durability
Sliding Life  Standard life: 15,000 Cycles Min.: Long life: 100,000 Cycles Min.
