| Series | Fxx06 |
| Package diameter | |
| Operating Direction | Horizontal |
| Bushing material | |
| Number of Gangs | |
| Power-linear | 0.2W Max |
| Power-audio | 0.1W Max |
| Life cycle | 10K |
| Switch Option | |
| Detent Option | Y |
| Mounting | |
| Element | 1-2 |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | 15/20/30/45/60 |
| Lever length | 10/15/20/25 |
| Turns | |
| Specification | Document download |

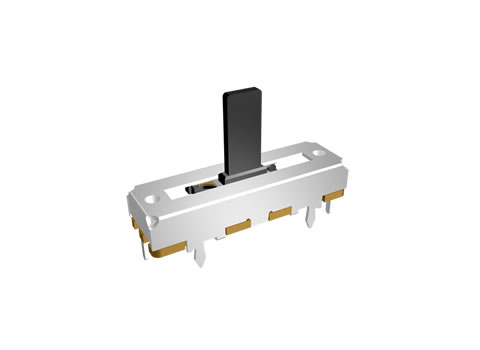

Introdution
1.Metal housing.
2.Center detent option.
3.Metal slide rod type.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω＜R＜1MΩ:± 20%: R＜500Ω or R＞1MΩ: ±30% |
| Resistance Taper | A, B, C |
| Withstand Voltage | 1 minute at AC 300V |
| Insulated Resistance | More than 10MΩ at DC 250V |
| Sliding Noise | Less than 100mV |
| Residual Resistance | 20mm: Term .1~2(2'~3'): Less than 10Ω; Term .2~3(1'~2'): Less than 20Ω; 30mm: Term .1~2(2'~3'): Les |
| Gang Error (Dual Unit) | - 40dB~0dB±3dB |
| Rated Voltage | Linear Taper B:15mm:AC 100V; 20mm,30mm,45mm,60mm:AC 200V; Other Tapers :15mm:AC 50V; 20mm,30mm,45mm |
| Rated Power (Single Unit / Dual Unit) | Linear Taper B:15mm:0.05W/0.025W,20mm:0.1W/0.05W, 30mm:0.2W/0.1W,45mm:0.25W/0.125W, 60mm:0.2W/0.2W; |
| Mechanical characteristics | |
| Slide Torque | 10gf~100gf |
| Stopper Strength | 5.0Kgf.cm Min (from the base level to a point of 2 mm) |
| Detent torque (only center click) | 50gf~200gf |
| Level Wobble | 2(2xL)/ 20mm Max.(L :Level length both sides) |
| Level Push-Pull Strength | 3.0Kgf Min at 10Sec. |
| Durability | |
| Sliding Life | Standard life: 15,000 Cycles Min.; Long life: 100,000 Cycles Min. |
