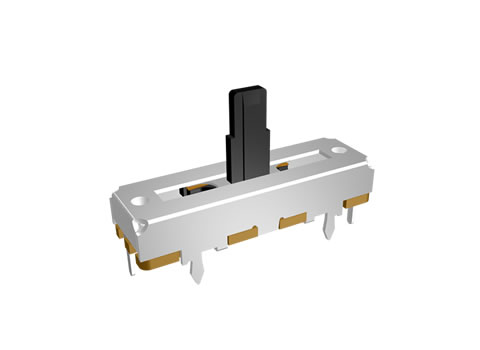

Product Detail

Series Fxx05
Package diameter
Operating Direction Horizontal
Bushing material
Number of Gangs
Power-linear 0.2W Max
Power-audio 0.1W Max
Life cycle 10K
Switch Option
Detent Option Y
Mounting
Element 1-2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 15/20/30/45/60
Lever length 5/10/15/20
Turns
Specification Document download
Introdution

1.Metal housing.

2.Center detent option.

3.Plastic slide rod type.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance 500Ω<R<1MΩ:± 20%:  R<500Ω or R>1MΩ: ±30%
Resistance Taper  A, B, C
Withstand Voltage  1 minute at AC 300V
Insulated Resistance  More than 10MΩ at DC 250V
Sliding Noise  Less than 100mV
Residual Resistance  20mm: Term. 1~2 (2'~3'): Less than 10Ω;
             Term .2~3(1'~2'): Less than 20Ω
30mm:
Term. 1~2 (2'~3'): Less than 10Ω;
            Term. 2~3(1'~2'): Less than 30Ω
Gang Error (Dual Unit) - 40dB~0dB±3dB
Rated Voltage Linear Taper B: 15mm:AC 100V; 20mm,30mm,45mm,60mm:AC 200V;
Other Tapers: 15mm:AC 50V; 20mm,30mm,45mm,60mm: AC 150V
Rated Power (Single Unit / Dual Unit) Linear Taper B: 15mm: 0.05W/0.025W, 20mm: 0.1W/0.05W, 30mm: 0.2W/0.1W, 45mm: 0.25W/0.125W, 60mm: 0.2W/0.2W;
Other Tapers: 15mm: 0.025W/0 .012W, 20mm: 0.05W/0.025W, 30mm: 0.1W/0.05W, 45mm: 0.125W/0.06W, 60mm: 0.1W/0.1W
Mechanical characteristics
Slide Torque  10gf~100gf
Stopper Strength  5.0Kgf.cm Min (from the base level to a point of 2 mm)
Detent torque (only center click) 50gf~200gf
Level Wobble  2(2xL)/ 20mm Max. (L: Level length both sides)
Level Push-Pull Strength  3.0Kgf Min at 10Sec.
Durability
Sliding Life  Standard life: 15,000 Cycles Min.; Long life: 100,000 Cycles Min.
