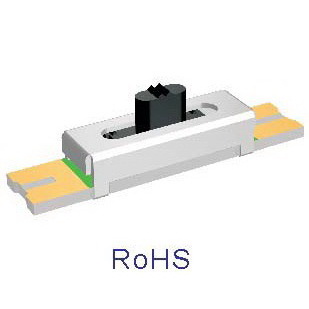

Product Detail

Series F03
Package diameter
Operating Direction Horizontal
Bushing material
Number of Gangs
Power-linear 0.1W Max
Power-audio 0.05W Max
Life cycle 5K
Switch Option
Detent Option Y
Mounting
Element 1-2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 4
Lever length 2
Turns
Specification Document download
Introdution

1.Carbon element.

2.Microminiature type.

3.PCB base plate with copper.

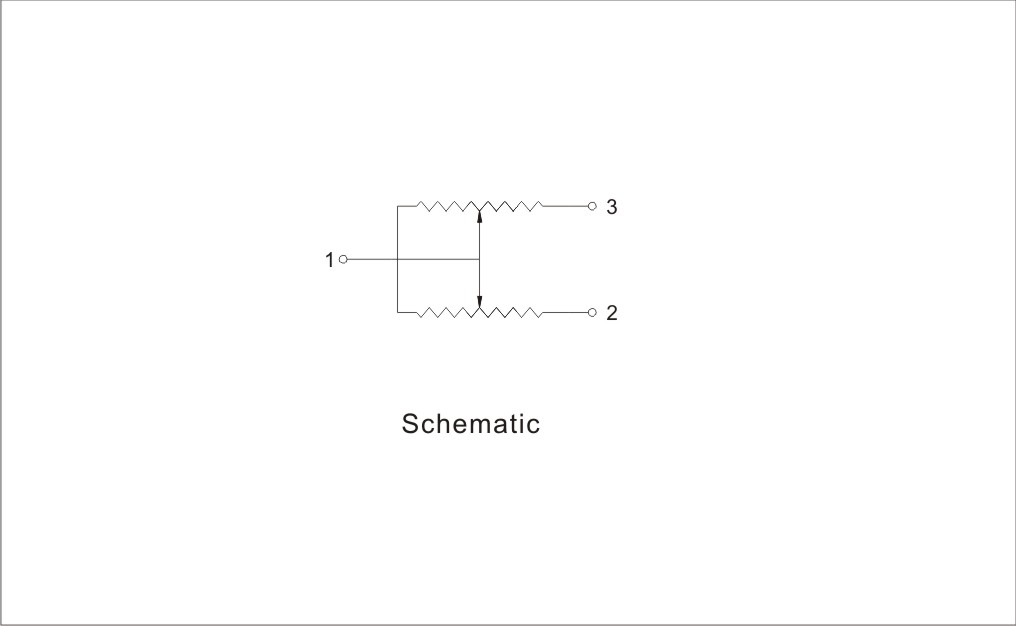

Electrical characteristics
Total Resistance  500Ω~100KΩ
Total Resistance Tolerance  ± 20%
Resistance Taper  A, B
Withstand Voltage  1 minute at AC 100V;
Insulated Resistance  More than 50MΩat DC 100V; Sliding Noise; Less than 100mV
Residual Resistance  Term.1~2: Less than 10Ω; Term.2~3: Less than 10Ω
Gang Error (Dual Unit) - 40dB~0dB±3dB
Rated Voltage  B Taper: 50V~200V
Rated Power (Single Unit/Dual Unit)  0.01W~0.05W

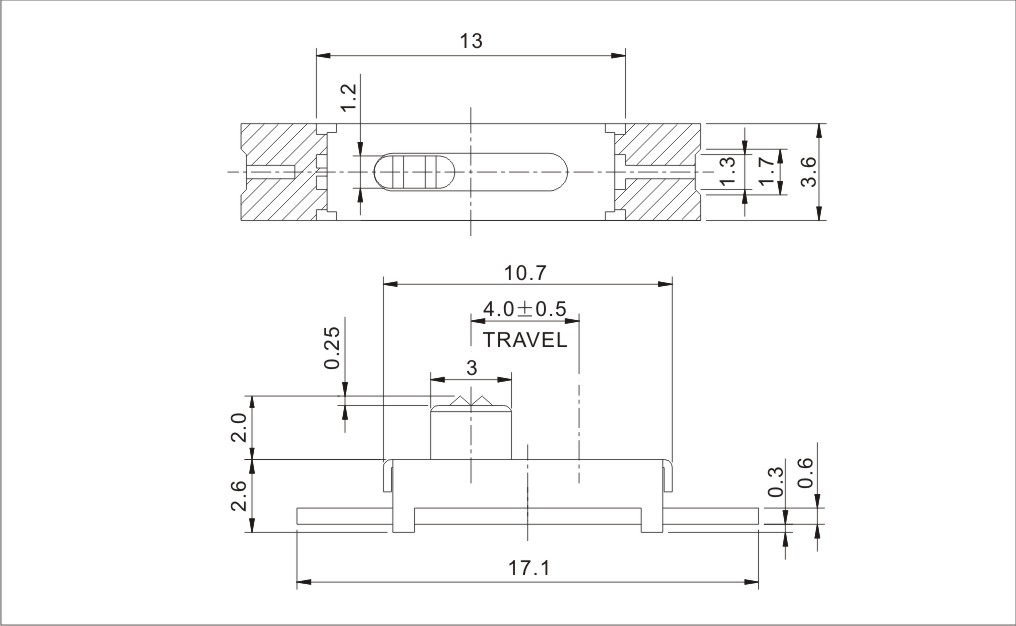

Mechanical characteristics
Slide Torque  5gf~90gf
Click torque  30gf~160gf
Stopper Strength  2.5Kgf Min (from the base level to a point of 2 mm)
Level Wobble  2 (2XL)/25mm Max (L: Level length both sides)
Level Push-Pull Strength  1.0Kgf Min at 10Sec.
Sliding Life  5,000 Cycles Min
