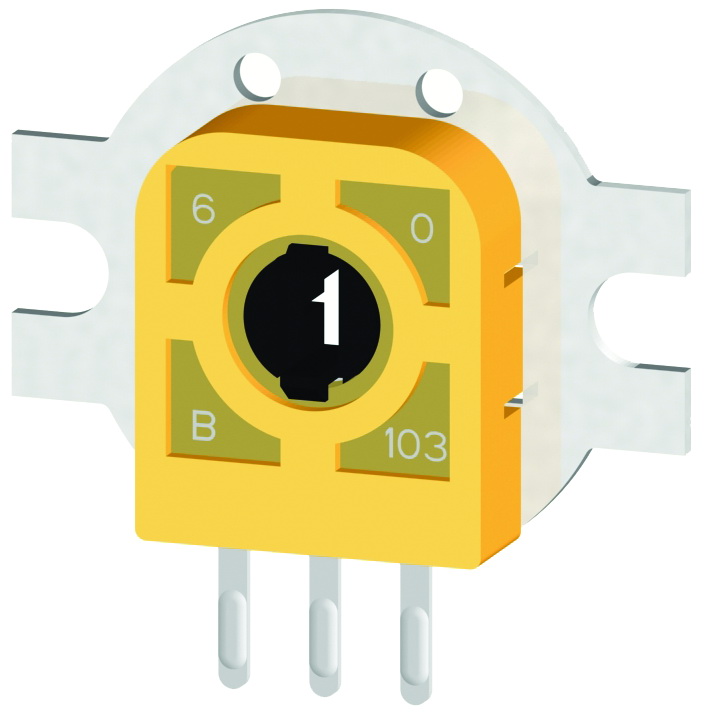

| Series | F10K |
| Package diameter | 10mm |
| Operating Direction | Vertical |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | |
| Switch Option | N/A |
| Detent Option | N/A |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | N/A |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1.Carbon element.
2.Inserting molding around the resistor with resin.
3.Long life, Miniature structure .
| Electrical characteristics | |
| Total Resistance | 10KΩ~100KΩ |
| Total Resistance Tolerance | ± 20% |
| Resistance Taper | B |
| Rated Power | 0.0125W |
| Withstand Voltage | 1minute.at AC 250V |
| Insulation Resistance | More than 100MΩ at DC 250V 1 Minute |
| Max. Operating Voltage | AC50V, DC 5V |
| Mechanical characteristics | |
| Total Rotational Angle | 360° |
| Rotational Torque | Less than 50gf |
| Push Strength of Shaft | 2.0Kgf Min. |
| Durability | |
| Rotational Life | Standard life: 1Million Cycles Min.: Long life: 2Million Cycles Min. |
