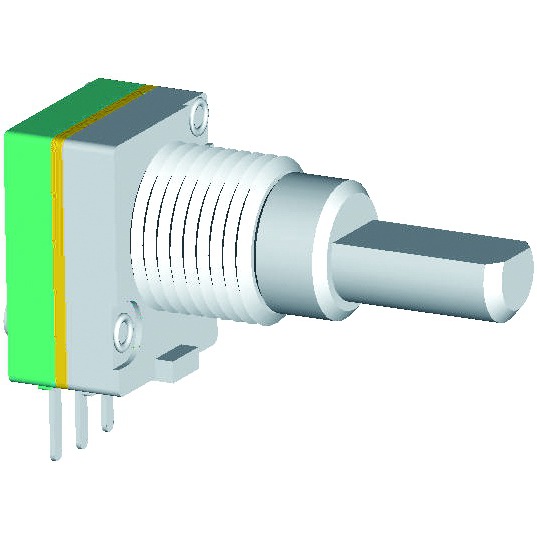

| Series | F081E |
| Package diameter | 8mm |
| Operating Direction | Vertical |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | 50K |
| Switch Option | Push, Rotary |
| Detent Option | 20 |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | 10 |
| Shaft material | Metal |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1.Flux builded-up prevention is taken through inserting molding around the resistor with resin.
2.A large variety of products lined up to support various applications.
3.Miniature design for Audio and walkie talkie applications.
| Electrical characteristics | |
| Rated Power | DC 5V, 2.5mA (1mA Min) |
| Contact resistance | 10Ω Max at DC 5V, 1mA |
| Insulation Resistance | More than 100MΩ at 250V for 1 minute |
| Withstand voltage | AC 300V for 1 minute |
| Number of detent | 20 detents (Angle: 18±° 3°) |
| Resolution | 10 Pulses/360°for each phase. Chattering 3ms Max |
| Phase-difference | Td=T/4±T/6(in case of no detent) |
| Mechanical characteristics | |
| Rotational Torque | 20 ~ 250gf.cm |
| Total Rotational Angle | 360° Continuous |
| Push-Pull Strength of shaft | Pull: 10.0Kgf Min; Push: 10.0Kgf Min |
| Bushing & nut tight strength | 10.0Kgf.cm Min |
| Endurance characteristics | |
| Rotational Life | 50,000 Cycles Min. |
| Load Life | 50,000 Cycles Min with load. |
| Dry heat | 70C°, 240±10H, CR is 10Ω Max; IR 10MΩ Min at DC250V. |
| Cold | -30C°, 1H, CR is 10Ω Max; IR 10MΩ Min at DC250V. |
| Damp heat | 40±2℃,90-95 RH for 96H,CR is 10Ω Max; IR 10MΩMin at DC 250V. |
