| Series | F082 |
| Package diameter | 8mm |
| Operating Direction | Vertical |
| Bushing material | |
| Number of Gangs | 2-6 |
| Power-linear | 0.05W |
| Power-audio | 0.025W |
| Life cycle | 25K |
| Switch Option | Y |
| Detent Option | Y |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
F082 Series

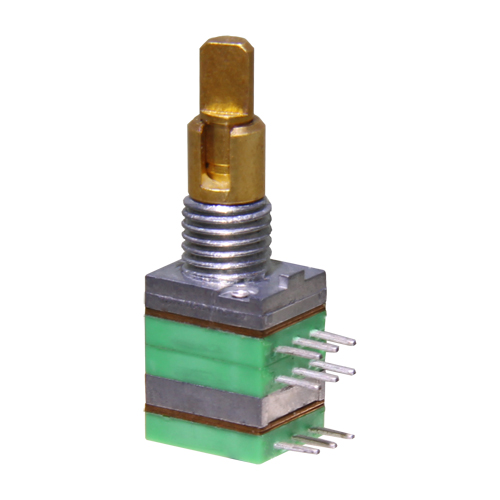

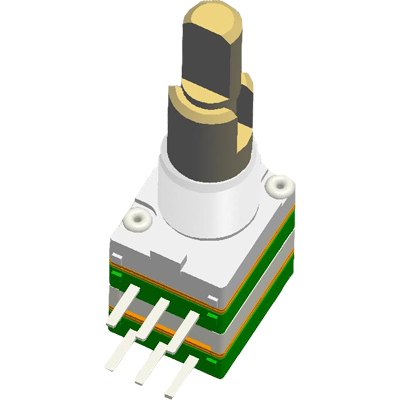

Metal shaft Potentiometer
1.Flux builded-up prevention is taken through inserting molding around the resistorwith resin.
2.A large variety of products lined up to support various applications.
3.Dual Shaft and miniature design for audio applications.
4.Long Life Type Available.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Resistance Tolerance |
500Ω<R<1MΩ:±20% R≦500Ω or R≧1MΩ:±30%
|
| Resistance Taper | A.B.C |
| Max. Operating Voltage | AC 50V, DC 10V |
| Rated Power | O.05W |
| Rotational Noise | 100 mV Max |
| Insulation Resistance | Less than 100MΩ at DC 250V |
| Withstand Voltage | 1 minute at AC 300V |
| Residual Resistance | 50Ω Max |
| Gang Error (Dual Unit or Multi-unit) | -40db~Odb±3db |
| Mechanical characteristics | |
| Detent | 1(Center) detent, 11 detents |
| Total Rotational Angle | 300°±1O° |
| Push-Pull Strength | Pull: 10Kgf Min; Push: 10Kgf Min at 10sec |
| Rotational Torque | 20-200gf.cm |
| Stopper Strength | 3.0Kgf.cm Min |
| Shaft Wobble | 0.5mm Max |
| Detent Torque | 20 ~ 250gf.cm |
| Bushing nut tighten Strength | 10.0Kgf.cm |
| Durability | |
| Rotational Life | Standard life: 30,000 Cycles Min.; Long life: 100,000 Cycles Min. |
| Cold Test | -20±2°C for 96 hours. △TR< ±15% |
| Dry Heat | 70±2°C for 96 hours. △TR< ±15% |
| Temperature Cycle | -20~+70°C, 5 cycles. △TR< ±15% |
| Soldering Condition | Solder dip: 260±5°C 5 Sec; Manual Soldering: 350°C±10°C 3 Sec |
| Switch characteristics | |
| Rated Power | 3.0A at DC 16V |
| Contact Resistance | Less than 50mΩ |
| Switch Angle | 30°±1O° |
| Switch Torque | 50~250gf.cm |
| Switch Life | 25,000 cycles at without load |
