Product Detail

Series F11ET
Package diameter 11mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 15K
Switch Option Y
Detent Option 15, 20
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse 15, 20
Shaft material Metal
Life cycle
Operating type
Power rating DC5V,10mA
Travel(mm)
Lever length
Turns
Specification Document download

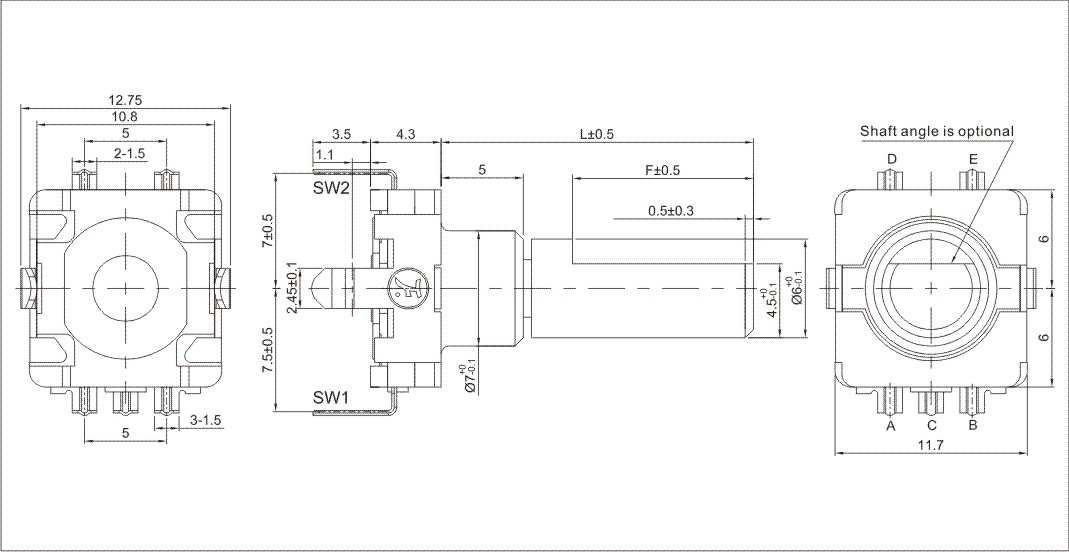

Introdution

1.Compact and highly accurate sliding contact type encoder

2.0.5mm travel push switch with compliance to 4.5mm height

3.incremental type

Electrical characteristics
Rated Power  DC5, 1OmA(1mA Min.)
Fluttering(Contact)  t1,t3 < 3ms
Rotary Noise  t2< 2ms
Phase-Difference  >0.08T
Insulation Resistance  More than 100MΩ at DC250V, 1mA.
Withstand Voltage  300V AC, 1A for 1min.
Resolution  Each output channel 15 pulses/360°
Mechanical characteristics
Total Rotation Angle  360°(Endless)
Detent Torque  30-100 gf.cm (0.3-1N.m)
Number and Position of Detents  30 detents(Step angle:12°±3°)
Push-pull Strength of Shaft  10Kgf Min. for 10 Sec
Shaft play in axial direction  O.4mm Max.
Rotation Play at the Click Position  4° Max.
Endurance characteristics
Rotational Life  30,000 cycles Min
Operating Temperature  -40°C ~ +85°C:
Dry Heat 85±3°C for 240±1Ohr.
Cold  -40±3°C for 240±10hr.
Damp Heat  -40±2°C, 90-95% RH, 240±1Ohr.
Resistance to Soldering Heat  Dip soldering: preheat within 100°C for 2Min; soldering Temp. is 260±5°C for 5 sec. Manual Solderin
Switch characteristics
Contact Resistance  100 mΩ Max. at 5V DC, 1 mA.
Switch Rating  DC 16V 0.5A  (1 mA Min.)
Switching Travel  0.5±O.3mm
Operating Force  6+2.5/-2N (610+255/-200 gf)
Insulation Resistance  More than 100mΩ at DC250V, 1mA
Withstand Voltage  300V AC, 1mA for 1min.
Switch Life  20,000 Cycles Min
