Product Detail

Series F24KSPP
Package diameter 24mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs 1
Power-linear 0.5W
Power-audio 0.25W
Life cycle 10k
Switch Option Y
Detent Option N/A
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download

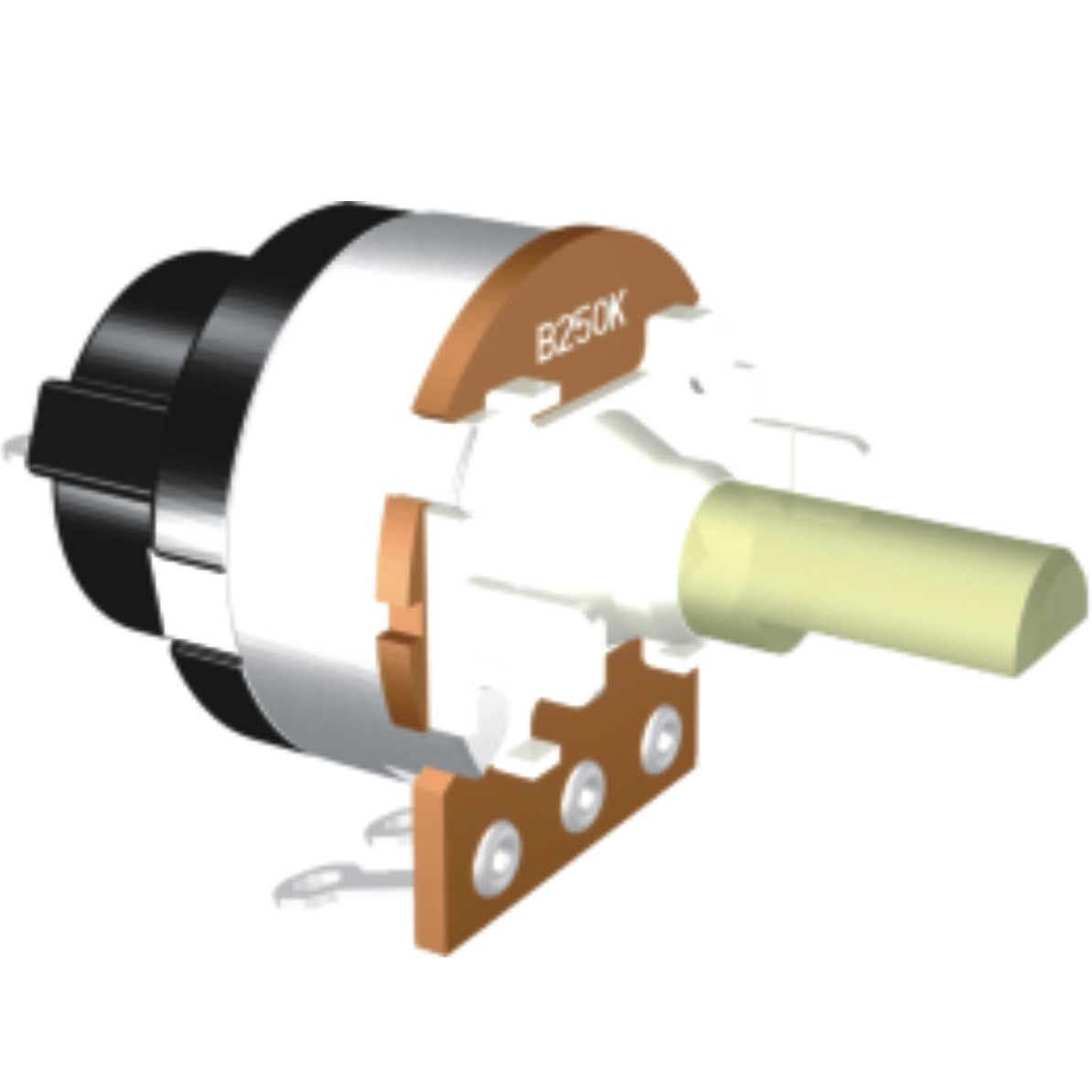

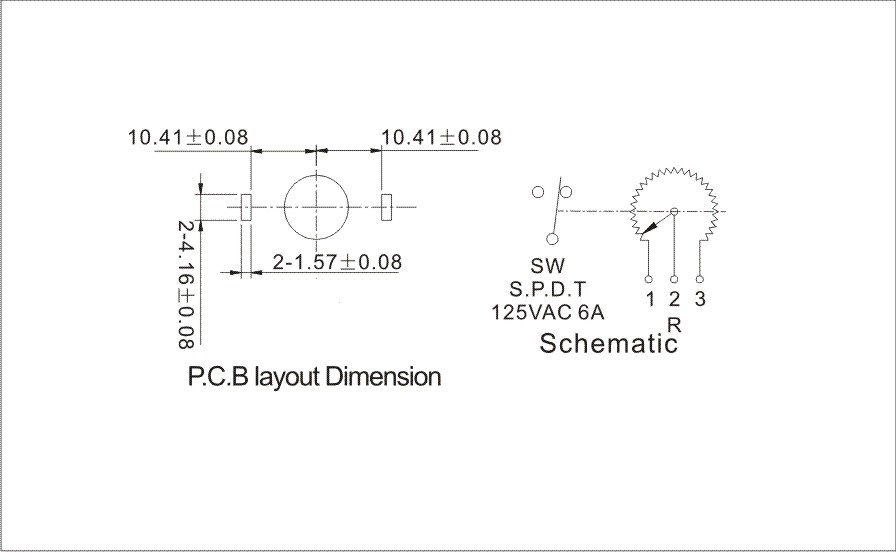

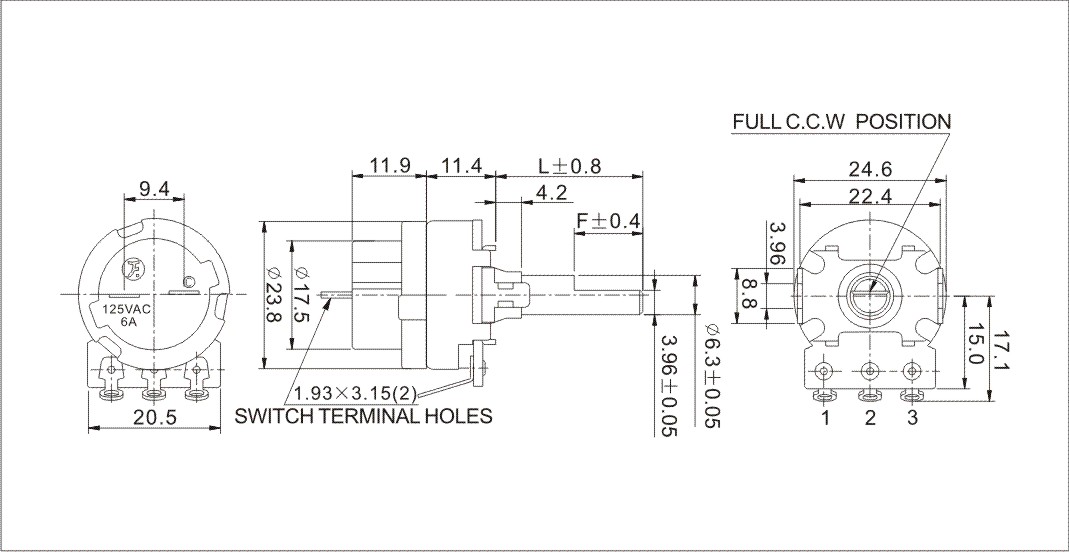

Introdution



1. plastic shaft style.

2.Carbon element.

3.Assorted pin layout.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500Ω <R<1MΩ:±320%  :R<500Ω or R >1MΩ: ±30%
Resistance Taper  A, B, C
Max. Operating Voltage  Linear Taper B: AC 500V, Other Tapers: AC 250V
Rated Power  Linear Taper B: 0.5W, Other Tapers: 0.25W
Rotational Noise  Less than 100mV
Insulation Resistance  More than 100MΩat DC 500V
Withstand voltage  AC1500V/1mA/1min (metallic case to terminals) AC1080V/1mA/1min (Switch terminals)
Residual Resistance  Term.1-2: Less than 10 Ω: Term.2-3: Less than 10Ω
Mechanical characteristics
Total Rotational Angle  300°±10°
Rotational Torque  50~200gf.cm
Stopper Strength  5.0Kgf.cm.Min
Push-Pull Strength  10.0Kgf Min
Switch characteristics
Contact Resistance   Less than 50m Ω
Rated Power  6.0A at AC 125V
The Length of Stroke (push-push switch)  5.0 ±0.5 mm
Operating force of switch (push-push switch) 800 -2000gf.cm
Switch Life  15,000Cycles
Durability
Rotational Life  15,000Cycles
