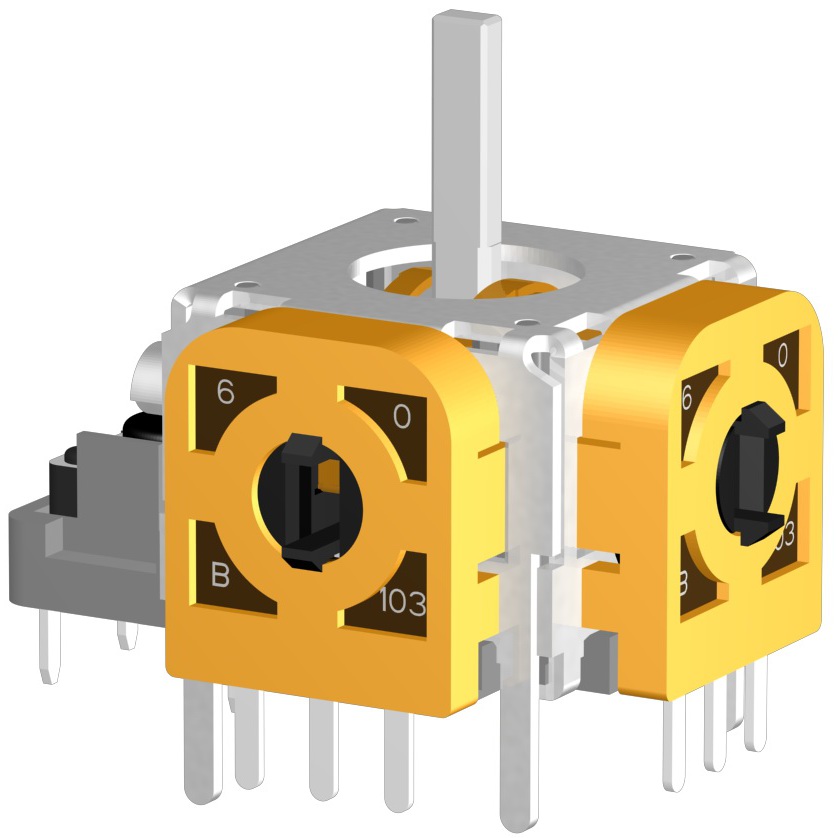

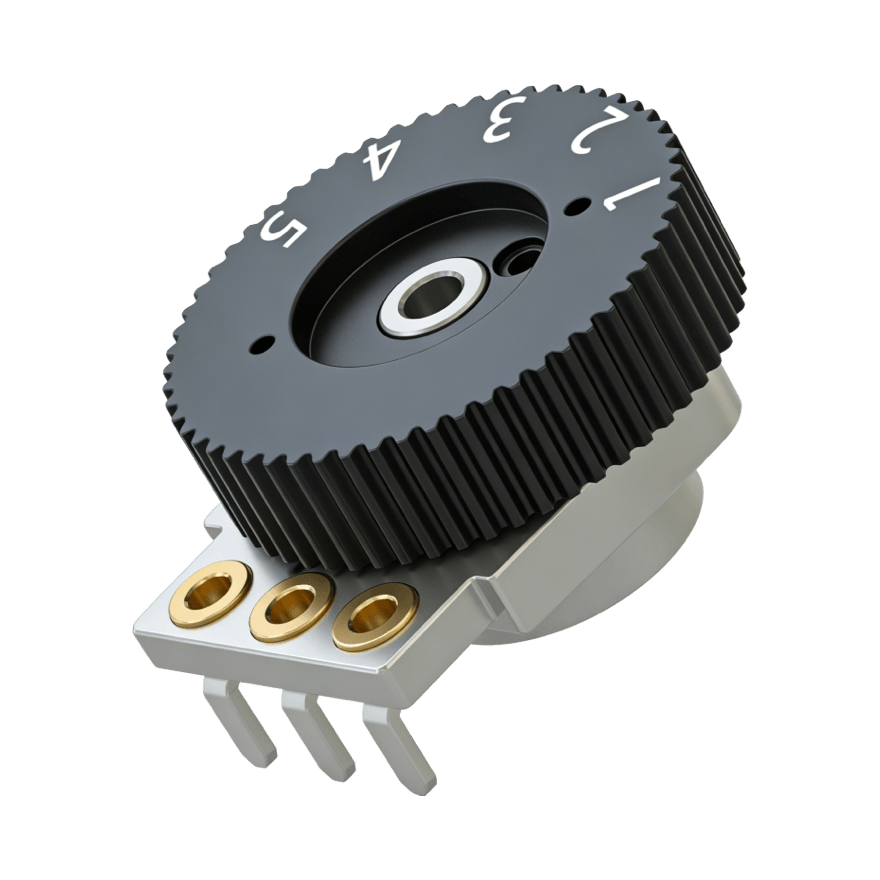

| Series | FJN10K |
| Package diameter | 16mm |
| Operating Direction | Horizontal |
| Bushing material | |
| Number of Gangs | N/A |
| Power-linear | 0.0125W |
| Power-audio | |
| Life cycle | 2 Million cycles |
| Switch Option | Y |
| Detent Option | N/A |
| Mounting | |
| Element | 2 pieces |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | Metal |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1.Superior operational feeling free from gaps in operating directions ideal for finger-tip operation.
2.Integrated tact switch for selection contributes to the improvement of user-friendliness of the set.
| Electrical characteristics | |
| Total Resistance | 5KΩ~100KΩ |
| Total Resistance Tolerance | ± 20% |
| Resistance Taper | B taper |
| Rated Power | Taper B: 0.0125W |
| Withstand Voltage | 1 minute at AC 250V |
| Insulation Resistance | More than 100MΩat DC 250V for 1 minute |
| Max. Operating Voltage | Taper B: AC 50V or DC 5.0V |
| Mechanical characteristics | |
| Figure of lever operation | Circular Operating |
| Stopper Strength | 3.1Kgf.cm Min 3Sec. |
| Operating angle of lever | 60°±6° |
| Push-Pull Strength | Push/Pull: 5.0Kgf Min 3Sec. |
| Operating Force | 160±40gf |
| Accuracy of rest position | ±5° |
| Durability | |
| Operating Life | Standard life: 1Million Cycles Min.: Long life: 2Million Cycles Min. |
| Tact Switch specification | |
| Ratings | 12 V DC, 50mA |
| Operating Force | 820±260gf |
| Travel | 0.5+0.5/-0.4mm |
| Operating Life | 100,000 Cycles min |
