Product Detail

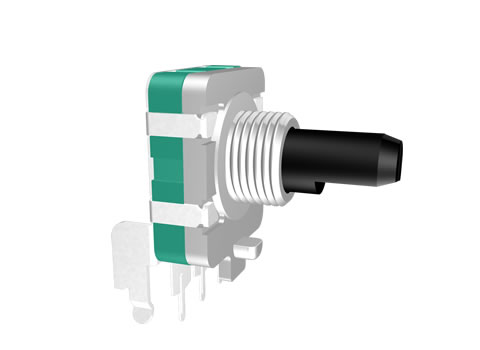

Series F16E
Package diameter 16mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 15K
Switch Option N/A
Detent Option 12, 24
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse 12, 24
Shaft material Plastic
Life cycle
Operating type
Power rating DC5V,10mA
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.High resolution of 12 pulse and 24 pulse in 16mm size.

2.Compact and highly accurate contact type encoder.

3.Incremental type.

Electrical characteristics
Rated Power  DC 5V, 5mA (0.5mA Min)
Fluttering  t1,t3<3ms
Insulation Resistance  More than 10MΩ at DC50V 1mA
Withstand voltage  1 minute at AC 50V 1mA
Rotary Noise (Bounce)  t2<2ms
Phase Difference  >0.08T
Mechanical characteristics
Rotational Torque of Detent  30gf.cm~130gf.cm
Total Rotational Angle  360°Continuous
Number and Position of Detent  12 Detents (Angle: 30°±3°); 24 Detents (Angle: 15°±3°)
Push-Pull Strength  8.0Kgf Min for 10Sec.
Bushing & nut tight strength  10.0Kgf Min
Durability
Rotational Life  30,000 Cycles Min
