Series F09K
Package diameter 9mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs 1-2
Power-linear 0.05W
Power-audio 0.025W
Life cycle 10K
Switch Option N/A
Detent Option Y
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

F09K Series
Metal shaft Potentiometer

Feature

1. Flux build prevention is taken inserting. The resistor is molded around with resin.
2. Carbon film element.
3. Insulated shaft.
4. Long Life Type Available

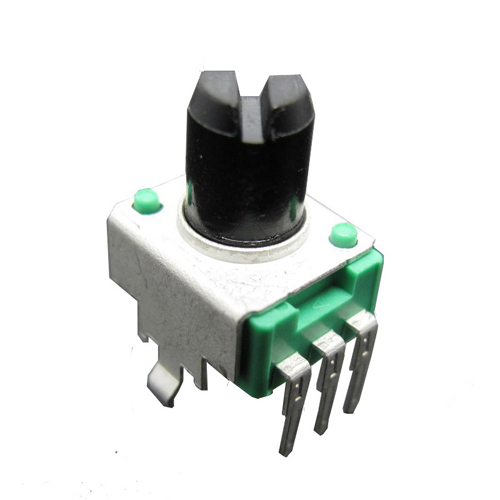

F09K Insulated Shaft Potentiometer



Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance  500Ω<R<1MΩ: ± 20% : R<500Ω or R>1MΩ: ±30%
Resistance Taper  A, B, C
Max. Operating Voltage  AC 50V / DC 20V
Rated Power  Single Unit: 0.05W   Dual Unit: 0.03W
Rotational Noise  Less than 100mV
Insulation Resistance  More than100MΩ at DC 250V
Withstand voltage  1minute at AC 250V
Residual Resistance  Term.1~2: Less than 20Ω:  Term.2~3: Less than 20Ω
Gang Error (Dual Unit)  -40dB~0dB ± 3dB
Mechanical characteristics
Total Rotational Angle  280°±10°
Rotational Torque  10 ~90gf.cm
Stopper Strength  3.0Kgf.cm Min.
Push-Pull Strength  5.0Kgf Min
Click Torque  30~120gf.cm
Durability
Rotational Life  Standard life :15,000 Cycles Min .: Long life: 10,000 Cycles Min.
