Product Detail

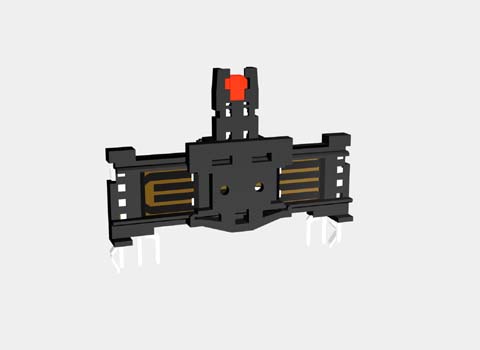

Series Fxx92
Package diameter
Operating Direction Vertical
Bushing material
Number of Gangs
Power-linear 0.025W
Power-audio 0.0125W
Life cycle 10K
Switch Option
Detent Option Y
Mounting
Element 1-2
Temperature ppm/℃
Tolerance
Pulse
Shaft material
Life cycle
Operating type
Power rating
Travel(mm) 20/30
Lever length 9.5
Turns
Specification Document download
Introdution

1.Flux builed-up prevention is taken through inserting molding around the resistor with resin.

2.Improve operational feel, snap and mounting strength.

3.Available with center tap and center detent.

Electrical characteristics
Total Resistance  1KΩ~1MΩ
Total Resistance Tolerance 500Ω<R<1MΩ:± 20% :R<500Ω or R>1MΩ:±30%
Resistance Taper  A, B, W
Withstand Voltage  1 minute at AC 250V
Insulated Resistance  More than 100MΩat DC 250V
Sliding Noise  Less than 100mV
Residual Resistance  Term.1~2: Less than 30Ω:Term.2~3: Less than 50Ω
Gang Error (Dual Unit) ± 2dB at the point 50% travel
Max. Operation Voltage  AC 50V/DC 10V
Rated Power  0.025W
Mechanical characteristics
Slide Travel  20mm, 30mm
Operating Force  10gf~100gf
Stopper Strength  3.0Kgf (from the bas Level to a point of 2mm)
Click torque (Only Center Click) 30~150gf
Level Push-Pull Strength  3.0Kgf Min at 10Sec.
Level Wobble  2 (2XL)/20mm Max. (L: Level length both sides)
Durability
Sliding life  50,000 Cycles Min.
