Product Detail

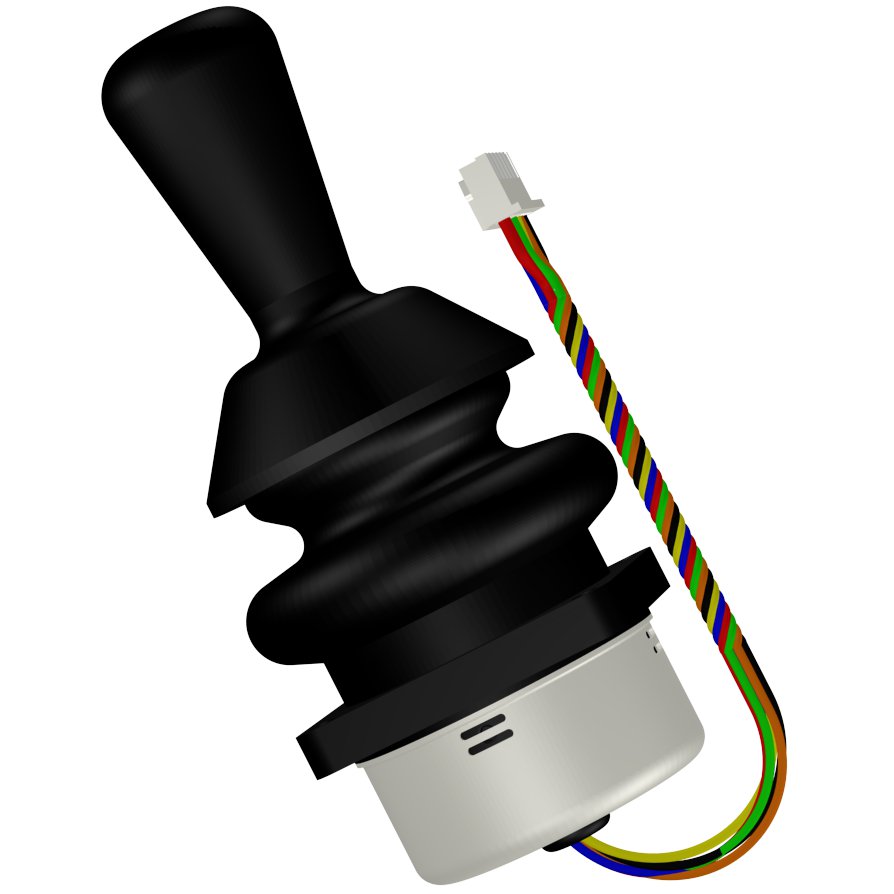

Series FHS50
Package diameter
Operating Direction
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 10Million cycles
Switch Option N/A
Detent Option N/A
Mounting
Element
Temperature ppm/℃
Tolerance +/-3%
Pulse
Shaft material
Life cycle
Operating type Multiway
Power rating 0.1W
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.Compact units,high responsive.

2.Superb proportional control.

3.Longlife,10 million cycles min.

4.EMC protected,sealed to Ip65.

Electrical characteristics
Power Supply DC 5V +/- 10%
Output Voltage at Centre  2.5V +/- 120mV
Power Rating 0.1W
Output Voltage at Tap 2.5V ±80mV
Current Consumption Less than 20mA
Output Voltage span 0.5V~4.5V
Centre Tap Impedance 1K
Load Resistance Over 10kΩ
Independent Linearity Tolerance +/- 3%
Electrical Deflection Angle  +/- 19°
EMC Durability 100 V/m
Mechanical characteristics
Operating Angle of Angle 38±5°
Operating Force  Of Lever  350±150gf
Pull Strength of Handle  Over 1.5Kgf for 3Sec. Min
Push Strength  10Kgf for 10s
Stopper Strength of Leve Over 10Kgf for 3 Sec. Min
Environmental characteristics
Storage Temperature -40℃ to +70℃
Operating Temperature -25℃ to +70℃
Seal Above Panel  IP 65
Life Cycles 10 million min
Dry Heat 80±2℃,96H
Cold  -30±2℃,96H
Damp Heat  40±2℃,90~95RH,96H
Temperature Cycles -10℃~+60℃,5 Cycles
